Navigating with Jetpack Compose

The easiest way to implement Navigation and Jetpack Compose

source: “https://unsplash.com/@timgraf99”

TL;DR version: Here is the GitHub repository https://github.com/franciscobarrios/NavCompose

What is this?

navigation in a Jetpack Compose application, what I have here is a single activity application with 4 views, with the idea of keeping it simple as possible.

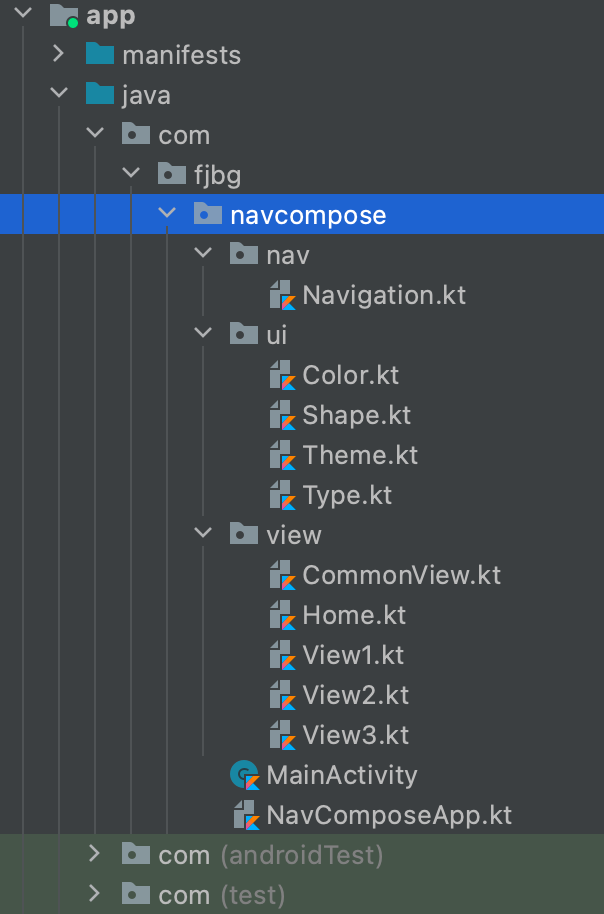

This is the project structure:

• nav: contains Navigation.kt this handle the navigation logic
• ui: this is created by Android Studio and contains everything related to ui
• view: contains views, maybe we can say those are like fragments?
• MainActivity: is the only activity in the app
• NavComposeApp: is a composable function

This is an “One Activity app” with four views

class MainActivity : AppCompatActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContent {
            navComposeApp()
        }
    }
}

navComposeApp()

navComposeApp is a composable function to handle the UI, this function displays a view depending on the user’s navigation

@Composable
fun navComposeApp() {
    val navController = rememberNavController()
    val actions = remember(navController) { Action(navController) }
    NavComposeTheme {
        NavHost(
            navController = navController,
            startDestination = Home
        ) {
            composable(Home) {
                home(action = actions.view1)
            }
            composable(View1) {
                view1(action = actions.view2)
            }
            composable(View2) {
                view2(action = actions.view3)
            }
            composable(View3) {
                view3()
            }
        }
    }
}

Is important to understand this: Action(navController)

object Destinations {
    const val Home = "home"
    const val View1 = "view1"
    const val View2 = "view2"
    const val View3 = "view3"
}

class Action(navController: NavHostController) {
    val home: () -> Unit = { navController.navigate(Home) }
    val view1: () -> Unit = { navController.navigate(View1) }
    val view2: () -> Unit = { navController.navigate(View2) }
    val view3: () -> Unit = { navController.navigate(View3) }
    val navigateBack: () -> Unit = { navController.popBackStack() }
}

Action is class that use a NavHostController object, this is called in the navComposeApp function

val actions = remember(navController) { Action(navController) }

Then we have four views like this one:

@Composable
fun home(action: () -> Unit) {
    common(
        text = "this is Home",
        action = action
    )
}

Every view is a composable function and receive:

action: () -> Unit

Each view is a composable function and receives:

@Composable
fun common(
    text: String,
    action: () -> Unit
)

Common is another composable function, and receive a text and an action,

text: is just to show something in the view, when the user press fab this will navigate to the next view and text will change and show a different message,

action: decide which view the user will navigate

@Composable
fun common(
    text: String,
    action: () -> Unit
) {
    Scaffold(
        topBar = {
            TopAppBar(
                title = { Text(text = "TopAppBar") },
                backgroundColor = purple500,
                navigationIcon = {
                    IconButton(onClick = action) {
                        Icon(asset = Icons.Filled.ArrowBack)
                    }
                }
            )
        },
        bodyContent = {
            showText(text = text)
        },
        isFloatingActionButtonDocked = true,
        floatingActionButtonPosition = FabPosition.Center,
        floatingActionButton = {
            FloatingActionButton(
                onClick = action,
                icon = {
                    Icon(asset = Icons.Default.Add)
                }
            )
        },
        bottomBar = {
            BottomAppBar(
                backgroundColor = purple500,
                cutoutShape = CircleShape
            ) {

            }
        }
    )
}

@Composable
fun showText(text: String) {
    Box(Modifier.fillMaxSize()) {
        Text(
            text = text,
            fontSize = 32.sp,
            modifier = Modifier
                .align(Alignment.Center)
                .padding(
                    start = 36.dp,
                    end = 36.dp
                )
        )
    }
}

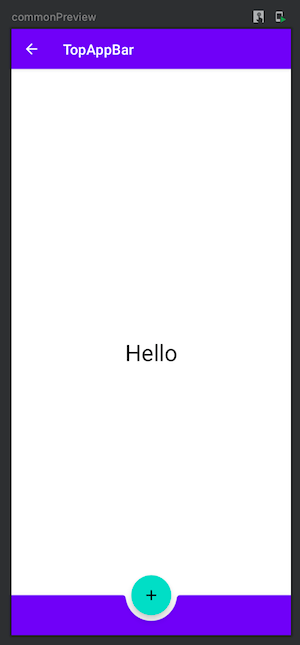

As I said before, common will receive a text and a action and will create a Scaffold with: topBar, bodyContent, fab and bottomBar, in the fab we will use the action

floatingActionButton = {
            FloatingActionButton(
                onClick = action,
                icon = {
                    Icon(asset = Icons.Default.Add)
                }
            )
        }

So every time the user presses the FAB they will navigate to the next view

Then again in navComposeApp

NavComposeTheme {
    NavHost(
        navController = navController,
        startDestination = Home
    ) {
        composable(Home)  { home(action = actions.view1) }
        composable(View1) { view1(action = actions.view2) }
        composable(View2) { view2(action = actions.view3) }
        composable(View3) { view3() }
    }
}

We define that: when the user is in Home and presses fab, the user will navigate to View1 and so on … until he reaches View3

So that’s it

franciscobarrios/NavCompose

Any comment will be appreciated
